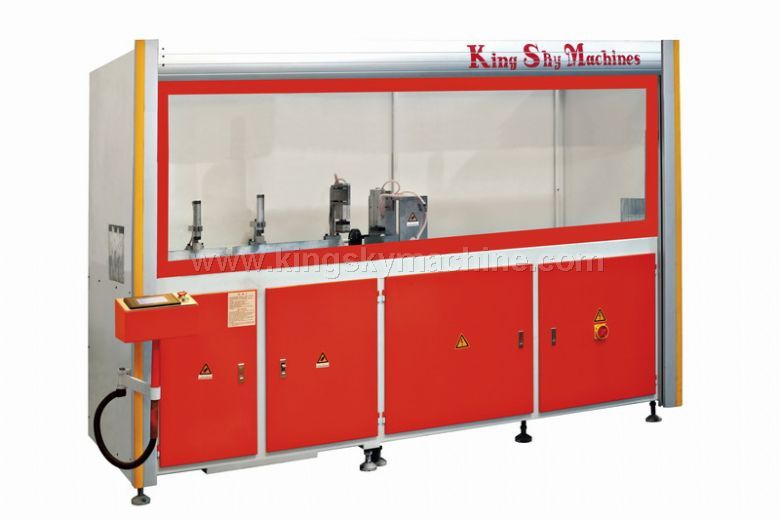

ENGLISHKS-J8117/J8117S-Multi-angle Auto-feeding Single Head Saw
This machine adopts mature German design concept and application of the latest operation requirements and practices, mainly used for cutting aluminum alloy, PVC, copper and other industrial profile, angle profile, aluminum alloy materials of doors and windows as well as curtain wall. It’s the most stable and widely machine for volume cutting in the market.
By adopting arm-waving type feeding, the golden cutting angle formed by the tool and profile has unmatched advantages for its stability and durability, smoothness and accuracy of cutting than other similar machines of different structure. Equipped with German hard alloy saw blades, Japan servo motors, precise ball screw and imported rails, the main parts are casted with seamless connection, the repositioning accuracy is ±0.05m.
TECHNICAL PARAMETER
|
Model and parameter |
KS-J8117 Rotation Swing |
KS-J8117S CNC Rotation Swing | |
|
Cutting angle |
At any angle of ±22.5° | ||
|
Range of cutting angle |
Any angle doubles sides | ||
|
Processing range ( H×W) |
150×230mm | ||
|
Maximum cutting length of one-time feeding |
5-595mm |
5-1200mm | |
|
automatic feeding mode |
Cylinder feeding |
CNC servo feeding | |
|
Feeding and cutting mode |
Repeated feed and equal length cutting |
Can set to get repeated equal length or different length feeding | |
|
Precision of angle |
±0.05° |
±0.02° | |
|
Precision of cutting length |
±0.1 mm |
±0.05mm | |
|
Rotating speed of main motor |
2840r/min | ||
|
Power of main motor |
Standard: 2.2kW/3.0kW Other types of motors can be selected | ||
|
Saw feeding \ returning speed |
Feed 0-3m/min Return2-3m/min | ||
|
Saw blade size |
Ф500×Ф30×120T | ||
|
Power supply |
380VAC 50Hz, no-standard can supply as discussed | ||
|
Dimension/Packing (L × W × H) mm |
4700 x1120x1350mm |
5580x1120x1350mm | |
|
Weight of machine |
850KG |
1500Kg | |
|
Optional device |
Clamp, positioning templates, Dust collector and spare tool and material bracket | ||
Remarks: More functions can be gained by choose the feeding mode and cutting head working mode.
