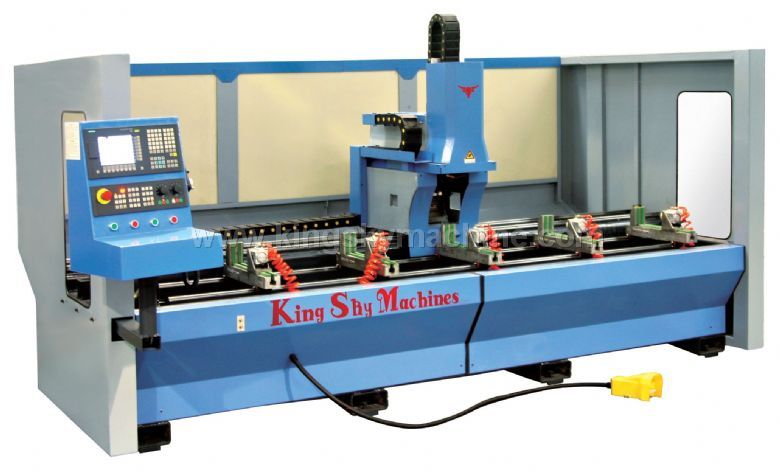

ENGLISHKS-Y3303D-CNC Profile Machining Center
TECHNICAL PARAMETER
|
Model and standard parameter |
KS-Y3303D CNC Profile Machining Center |
|
Maximum machining length: |
3000mm |
|
Maximum machining width: |
300mm |
|
Maximum machining height: |
300mm |
|
Power of spindle: |
6kW/7.5kW(Tool Changing) |
|
Tool shank: |
ISO 30 |
|
Spindle RPM: |
24000rpm |
|
X-axis speed: |
60m/min |
|
Y-axis speed |
40m/min |
|
Z-axis speed |
30m/min |
|
Reposition accuracy: |
±0.05mm/m |
|
Precision of cutting length |
±0.1mm/m |
|
Spindle and tool change system |
Air cooling |
|
X-axis drive |
German Dual gear rack and pinion and linear guide |
|
Y / Z axis drive |
Japan ball screw and linear guide |
|
Operating system |
WINDOWS XP，GERMAN KINGSKY profiles professional software ( read PLT or DXF to achieve processing automatically) |
|
Tool detection |
Automatic measurement of tool length/ automatic tool sensor |
|
Dimension (L × W × H) |
3800×2000×2050mm |
|
Optional functions and devices | |
|
Installation of rotary C-axis: |
The workpiece can realize machining of three sides for one-time clamping, -90 degrees to 90 degrees, the minimum setting angle: 0.5 degree, accuracy ± 0.1 degree |
|
Installation of automatic tool change and tool magazine |
Time of tool change: 5~10s
Capacity of tool magazine: 8+1 |
|
Security and protective devices |
Photoelectric protection in operation, milling scrap recycling device, movable loading workbench, assembled with sound-absorbing protective panel |
|
Tool detection |
Automatic measurement of tool length/automatic tool sensor |
|
Clamping work platform |
3set/4set/6set |
|
Tool accessories |
ISO30 tool bit/ Clamps / Tool |
|
Bar code scanners and supporting software |
For mass production, the profile data are automatically read, automatically implement the same machining procedure |
|
Machine weight |
2500kg |
