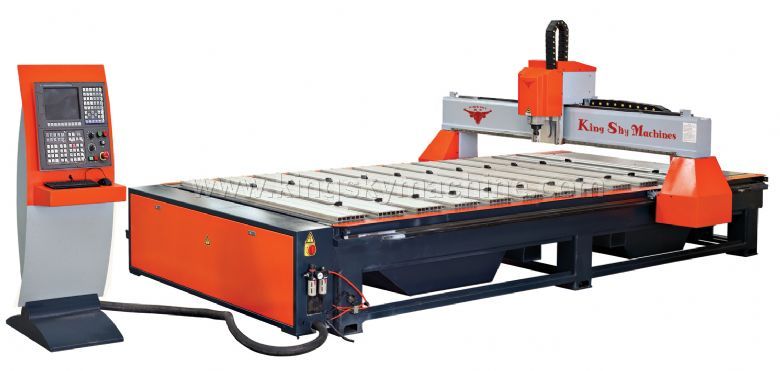

ENGLISHKS-B1225B/B1225-CNC Panel Machining Center / CNC Router
The machine adopts mature structural design of German Machining Center，and Germany KingSky Professional Profile CNC Control System, supports linear, circular, threaded interpolation and string cable continuous high-speed interpolation to realize orderly machining of engraving, milling, cutting, grooving for the non-ferrous metal plates, chemical composite plates, wood plates, and artificial stone aluminum plates.
The worktable is equipped with convenient vacuum pump system,all the moving parts are lubricated by interval supply system and tools are cooled by cooling spray system to prolong the lifespan and improve the fineness of the workpieces;this machine is produced by one-time machining center after annealing treatment, adopts box-structure lathe bed and gantry structure girder ,as well as original imported west German ball screw,linear guide,pinion and rack and Italian "HSD" air-cooled spindle to ensure its stability,precision and efficiency.
The machine is of powerful expansibility:we also provide professionally-designed profile clamping devices, which can complete the milling and machining of various types of profile. Can be installed of automatic tool change and tool magazine system.
TECHNICAL PARAMETER
|
Model and standard parameter |
KS-B1225B / KS-B1225 |
KS-B1530B / KS-B1530 |
KS-B2040B / KS-B2040 |
|
Maximum machining area |
1270×2540 mm |
1500×3000 mm |
2000×4000 mm |
|
Height from cross beam to workbench |
200 (mm) |
200 (mm) |
200 (mm) |
|
X-axis speed: |
60m/min | ||
|
Y-axis speed |
40m/min | ||
|
Z-axis speed |
30m/min | ||
|
Repositioning accuracy: |
± 0.1mm | ||
|
Spindle: |
Air cooling 6KW HSD | ||
|
Rotating speed of spindle: |
18000-24000rpm | ||
|
Tool shank: |
ISO 30 | ||
|
X-axis drive mode |
Japan Servo Motor, German Dual gear rack and pinion , linear guide | ||
|
Y / Z axis drive mode: |
Japan Servo Motor, ball bearing screw , linear guide | ||
|
CNC System: |
GERMAN KINGSKY Profile Professional Software | ||
|
Tool detection |
Automatic measurement of tool length/ automatic tool sensor | ||
|
Material clamping and pressing devices |
Adustable automatic clamps8 sets/positioning device 1 set | ||
|
Dimension (L × W × H) |
3500×2280×1800mm |
3850×2560×1800 |
5200×3200×2000mm |
|
Optional functions and devices | |||
|
Installation of fourth / fifth-axis: |
Installation of 3 +1 linkage along X-axis / installation of forth-axis interpolation linkage in the machine head | ||
|
Installation of rotary C-axis: |
The workpiece can realize machining of three sides for one-time clamping, -90 degrees to 90 degrees, the minimum setting angle: 0.5 degree, accuracy ± 0.1 degree | ||
|
Tool change system and tool magazine |
Installation of tool change function (time of tool change: 5~10s)
Tool magazine capacity: 6 | ||
|
Environment-friendly, safe and protective devices, humanizing devices |
Photoelectric protection in operation, Laser safety light curtain (divided into double work areas), milling scrap recovery system | ||
|
Installation of vacuum adsorption |
Vacuum adsorption workbench and vacuum pump | ||
|
Bar code scanners and supporting software |
For mass production, the profile data are automatically read, automatically implement the same machining procedure | ||
|
Machine weight |
2000kg |
2800kg |
4500kg |
