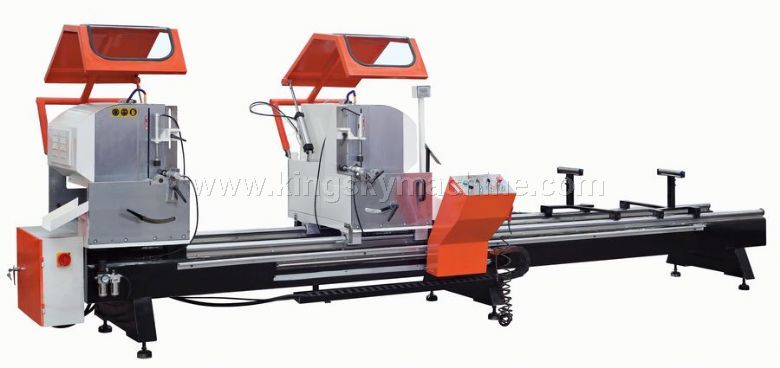

This machine is developed for the multi-angle material cutting of profile by adopting mature German design concepts in combination with the latest application requirement and practices. This machine is the widely used type for multi-angle cutting Aluminum, PVC curtainwall profile.



By adopting direct-push type feeding, this machine can complete a large high profile multi-angle cutting. Equipped with German carbide saw blades, imported guide rail, the main parts are cast, seamless connection; and installed with hydrau-pneumatic damper stepless speed regulation, automatic spray lubrication cooling device, this machine has the features of high strength, precise cutting and superior stability, smoothness and precision. With imported computer (PLC) integrated program control, this machine can realize simple operation with convenient operation and the functions of automatic detection and diagnosis and the features of high circuit stability, wide applicability of operating environment, remote maintenance, upgrading. The overall indicator of the whole machine has reached the international first class standard.

Model and parameter	KS-J221D  Digital display	KS-J221S  CNC Control		KS-J226S3  3-Axis CNC
Control mode of angle and length	pneumatic control Angle, Digital display Length	pneumatic control Angle, CNC Control Length		CNC Control Angle and Length
Precision of cutting length	±0.1mm	±0.05mm	±0.05mm
Automatic feeding function	No	Yes, and have multi-length auto-feeding cutting function
Optimized material cutting function	No	Yes
Processing range (M×H)	150×215×(370~4200)mm
Swing angle of electric control	45°  90°				22.5°~135°
Rotating speed of main motor	2840r/min
Power of main motor	2.2kW×2/ 3.0kW×2
Saw blade feeding \ returning speed	Feeding 0-3m/min   Returning 2-3m/min
Blade Size	Ф500×Ф30×4.1/4.4 ×120T				Ф600×Ф30×5.0×120T
Working air pressure / voltage	0.6-0.8MPa/380V 50Hz
Dimension (L × W × H)	5600×1460×1540 mm
Machine weight	2400kg				2500kg
Optional Devices and Functions	Tools and positioning template, Spare tools，Dust collector, D configuration bracket: can cut many profiles at 90 degrees
