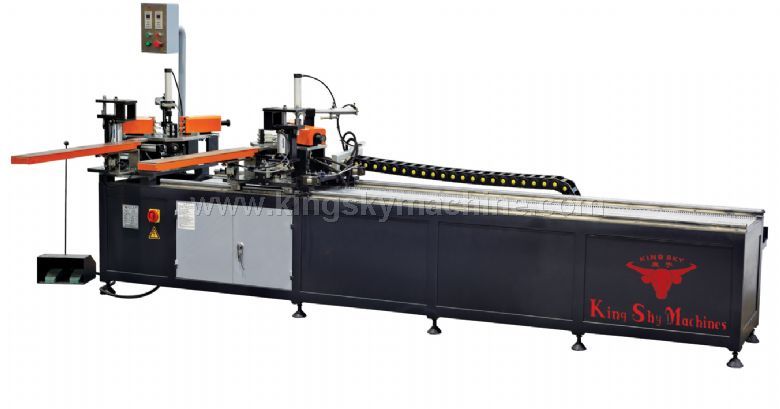

ENGLISHKS-2M0806-Double Corner Crimping Machine
It adopts mature Germany Classic structure and application of our accumulated production and design experience crimps four profiles to firmly fix 90 degree frame in two times by moving the motor head and adjusting the crimping fork position. The machine base is finished by machining center after annealing treatment, which ensures its high rigidity, stability, precision, this machine crimps two corners once, the production efficiency is much higher
TECHNICAL PARAMETER
|
Model and parameter |
KS-2MO806 Double Corner Crimping Machine |
|
Power of oil pump motor |
5kW |
|
Rated pressure of oil pump |
20MPa |
|
Maximum working travel |
50mm |
|
Maximum size of frame |
3500x3000mm |
|
Minimum size of frame |
250x450mm |
|
Working Mode |
Pre-tight by servo detection, then hydraulic crimping |
|
Overall Dimension |
4250x1200x1200 |
|
Machine Weight |
900kg |
|
Working air pressure |
0.6-0.8MPa |
|
Working voltage |
380VAC 50Hz |
|
Optional device |
spare tool |
